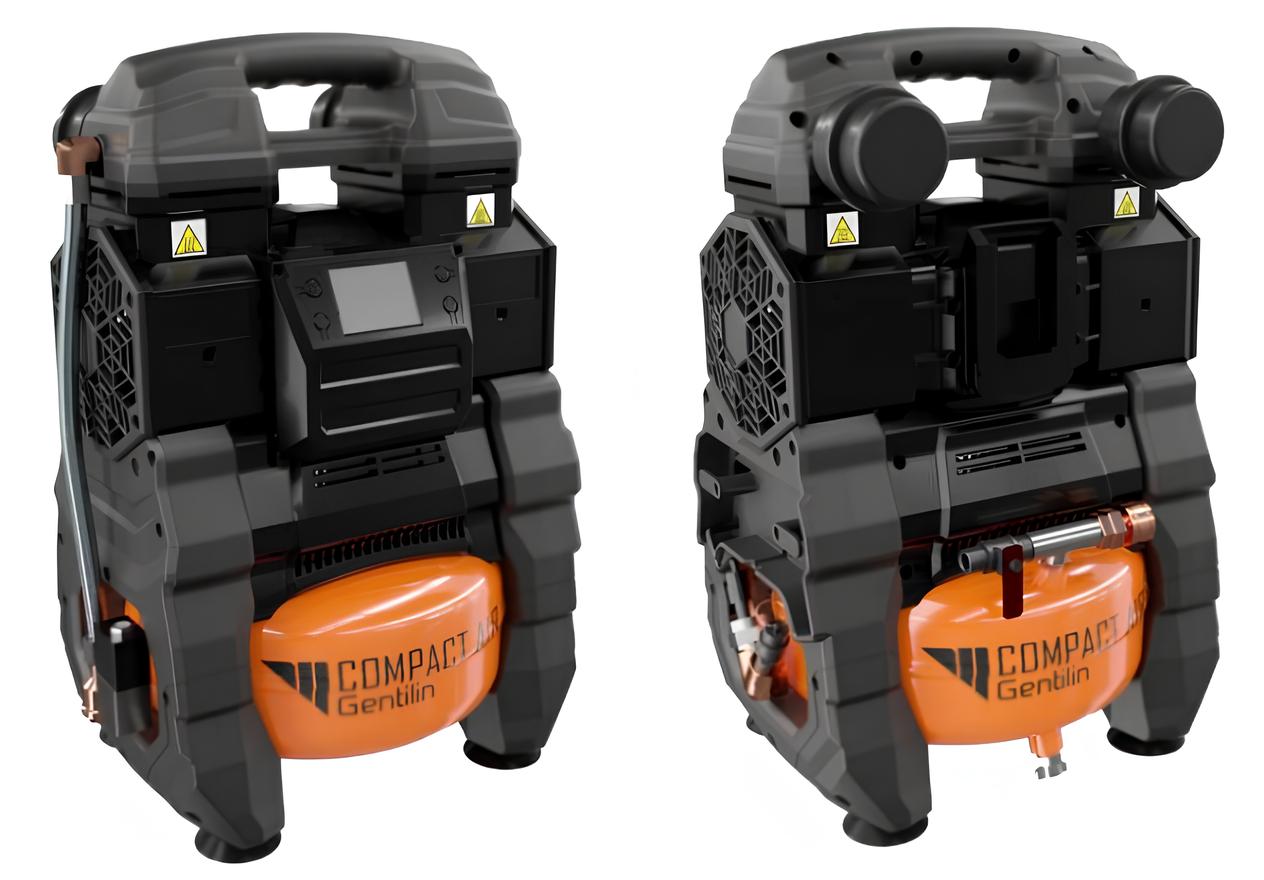

EVO Range
The concept
EVO range revolutionizes the concept of portability by introducing the lightest piston compressor series available in the market. GENTILIN's EVO was designed and developed for the mobile craftsman, to ensure:
- Maximum portability;
- Versatility of use in any environment and situation;
- Use for professional work cycles.
These results were achieved thanks to the combined use of various technologies and materials:
- High-efficiency brushless motors;
- Tanks made of lightweight aluminum alloy;
- Components made with innovative plastic polymers;
- Dual-speed programmable PLC control unit.
Thanks to these innovative features, the EVO range of compressors offers professional users:
Ultra-light compressors that can be carried by hand effortlessly
Granted functionality in all conditions, even in the absence of an electrical connection or in the presence of an unstable power supply.
Powerful and consistent airflow, with operating pressure up to 10 bar.
Maximum acoustic comfort during operation.
Who are EVO piston
compressors designed for?
Craftsmen on the move
Carpenters
Mobile workshops
Woodworkers
Plumbers
Installers
Construction companies
Electricians
Exhibition and event stand builders

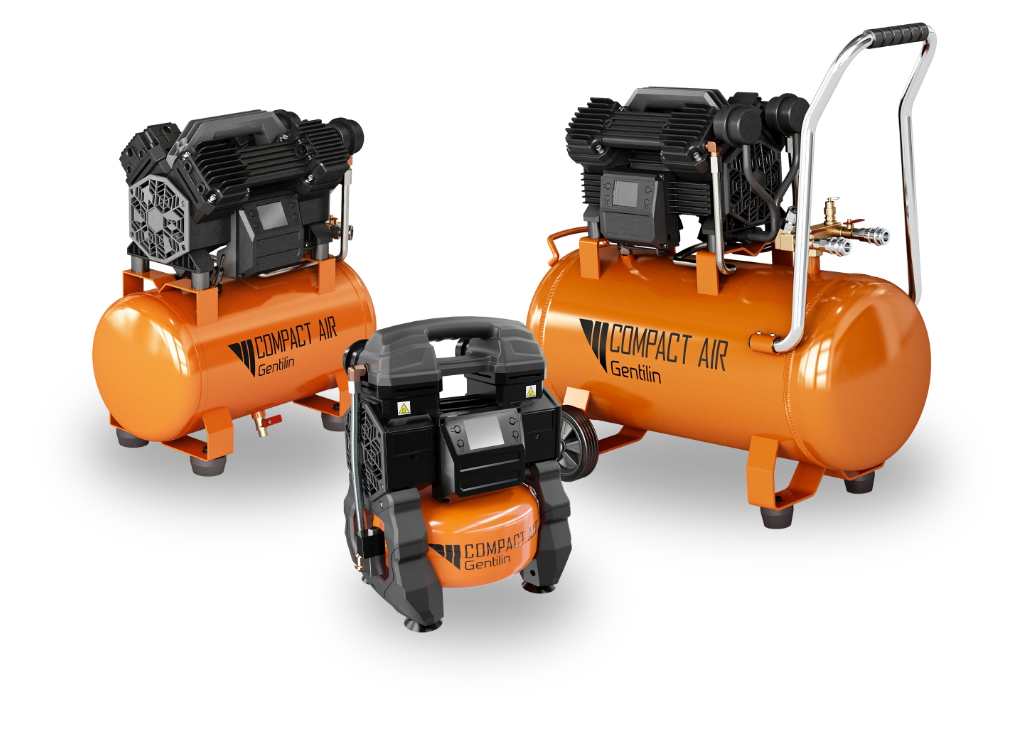

The range
| Power | From 0.9 to 2.2 kW |
|---|---|
| Tank capacity | From 5 to 40 L |
| Air quality | Oil-free Class 0 (ISO 13285) |
| Duty class | S3 - 70% ON - Professional operation |
| Maximum pressure | 10 bar |
| FAD (Free Air Delivery) | From 65 to 350 L/min |
| Maintenance intervals | 1,500 hours |
| Tank coating | Aluminum alloy |
| Sound level | Standard (69/76 dB) |
| Accessories | LCD display with pressure and power adjustment |

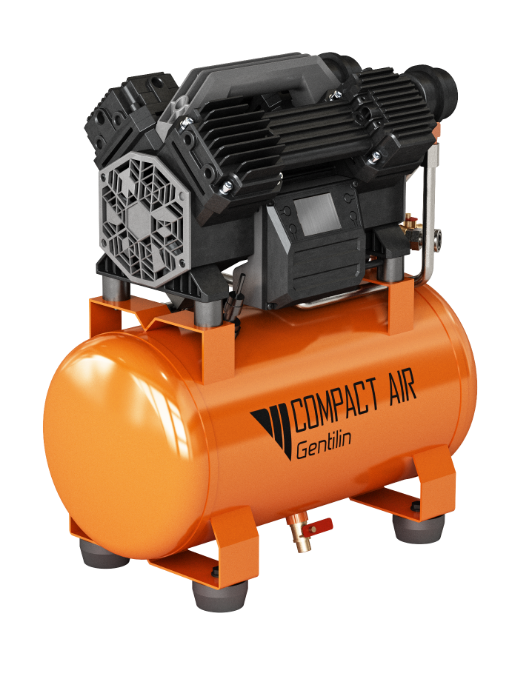

Functionalities
100% Oil free
Zero maintenance• Operating pressure up to 10 bar
• Large-diameter wheels (where fitted) for easy transport over uneven surfaces
• Reliable operation in sub-zero temperatures and in hot environments (–20 °C / +40 °C)

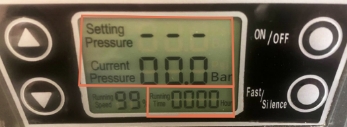

Electronic displays
• Pressure adjustment (3-10 bar)• Power/speed adjustment
• Operating pressure indicator
• Operating hours indicator
Unmatched lightness
• 40% lighter than comparable products• Aluminum alloy tanks
• Frames made of innovative polymer plastic
Ultra-compact design
• 40% more compact than comparable products• Innovative design and reduced tank size thanks to high power output
Brushless motors
• 40% more powerful and 50% lighter than standard brushed motors• Professional duty cycle (S3 - 70% ON)
• Variable speed based on air demand (via dedicated control button)
Stability on all surfaces
• Rubber feet for maximum stability, even on smooth or sloped surfaces• Large-diameter wheels (where fitted) for easy transport over uneven surfaces
Controlled suction
• Micro-regulated foam filters trap particles and dust, ensuring reliable performance even in dusty and dirty environmentsVersatility and tidyness
• 3-meter long power cables• Integrated cable winder to keep the unit tidy and compact
Robust and ergonomic handles
• Designed to ensure a secure grip, maximum comfort, and durability

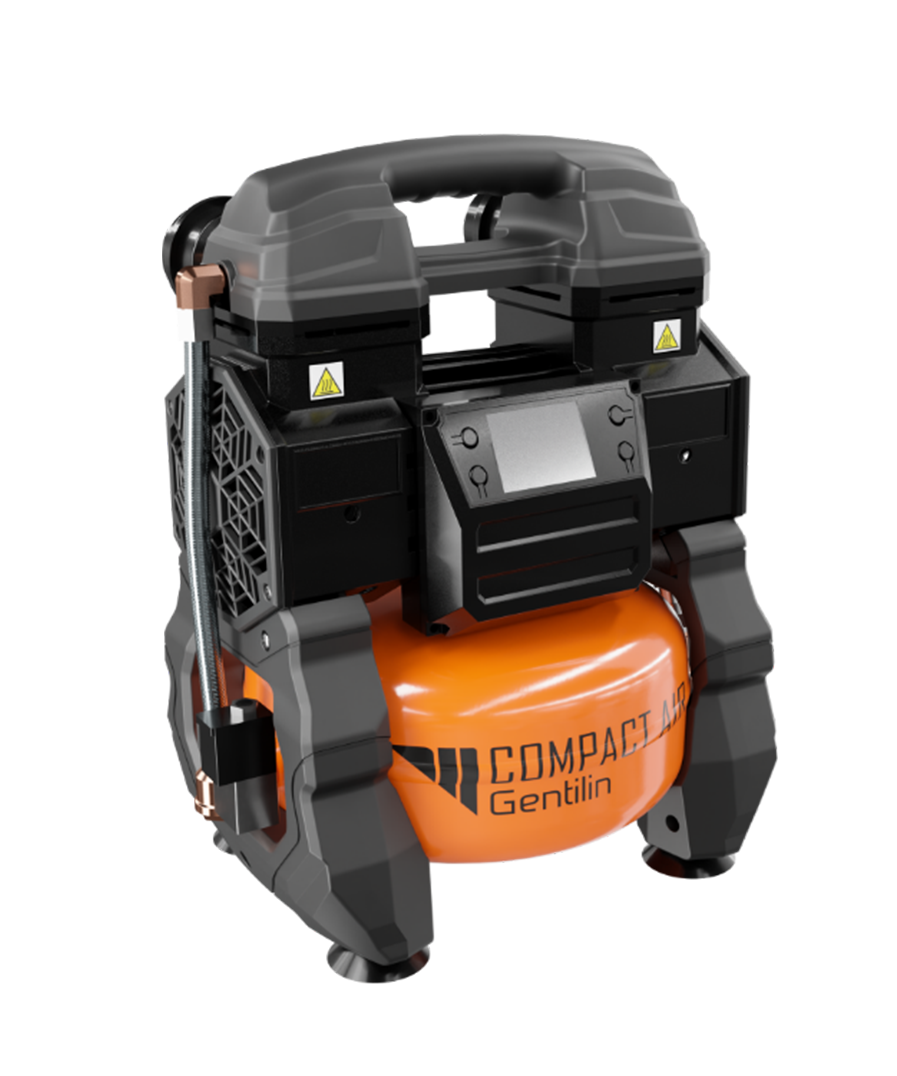

Specific features - DC100/05 model
3 power supply options
Operates with:
• 230 V mains power
• 18 V batteries
• 12 V batteries (with cables for connection to a car battery)
• Maximum versatility of use, even without access to the power grid

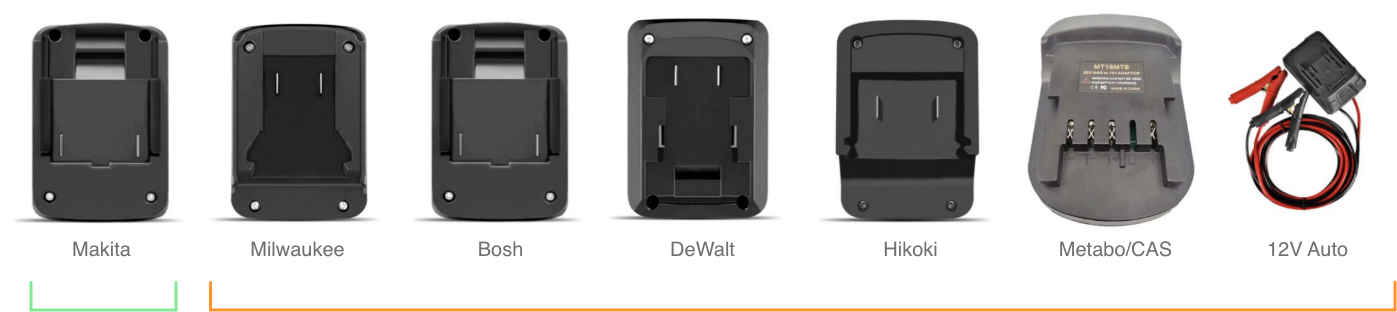

Battery compatibility (via adapters)
Battery compatibility (via adapters)
Included / Standard
Sold separately
End-user advantages
Portable air compressors from the EVO range offer numerous advantages compared to traditional compressors:
Easy transport anywhere
• Weight/performance ratio: you always have the air you need with minimal footprint and the lowest possible weight.
• Optimized logistics: you save valuable space in your van.
• Zero fatigue: transport to job sites is easier and more comfortable.
• Total versatility: thanks to the absence of lubricating oil, the compressor can be transported and operated in any position (even tilted or laid flat).
• Optimized logistics: you save valuable space in your van.
• Zero fatigue: transport to job sites is easier and more comfortable.
• Total versatility: thanks to the absence of lubricating oil, the compressor can be transported and operated in any position (even tilted or laid flat).
Work in any environment and situation
• Unstable power supply and long cables: thanks to high-efficiency brushless motors, you can work without issues even with long extension cords, low voltage, or when connected to generators.
• Extreme temperatures: reliable operation in both hot environments (+40 °C) and sub-zero conditions.
• Use without time restrictions: low noise levels allow operation in environments and time slots where traditional compressors would be prohibited or disruptive.
• Surface adaptability: the absence of lubricating oil allows the compressor to be positioned and used even on inclined surfaces.
• Extreme temperatures: reliable operation in both hot environments (+40 °C) and sub-zero conditions.
• Use without time restrictions: low noise levels allow operation in environments and time slots where traditional compressors would be prohibited or disruptive.
• Surface adaptability: the absence of lubricating oil allows the compressor to be positioned and used even on inclined surfaces.
Maximized uninterrupted
operation
• Professional duty cycle (70% ON): designed for semi-intensive and professional operating cycles.
• Climate resistance: consistent performance in both hot climates (+40 °C) and cold environments (below freezing).
• Total reliability: maximum performance with zero maintenance required.
• Climate resistance: consistent performance in both hot climates (+40 °C) and cold environments (below freezing).
• Total reliability: maximum performance with zero maintenance required.
Work in a more comfortable environment.
• No limits: low noise levels allow you to work anywhere.
• Flexible working hours: you can operate even during times of day that are usually “off-limits” due to noise restrictions.
• Less stress: enjoy a significantly quieter working environment.
• More freedom: eliminates the need to wear hearing protection devices.
• Flexible working hours: you can operate even during times of day that are usually “off-limits” due to noise restrictions.
• Less stress: enjoy a significantly quieter working environment.
• More freedom: eliminates the need to wear hearing protection devices.
Free yourself from maintenance issues and costs.
• No extra costs: zero maintenance expenses.
• No spare parts: no oil changes and no belt replacements.
• Maximum reliability: no breakdowns and no unexpected downtime during operation.
• Outstanding longevity: a service life up to 300% longer than comparable products.
• No spare parts: no oil changes and no belt replacements.
• Maximum reliability: no breakdowns and no unexpected downtime during operation.
• Outstanding longevity: a service life up to 300% longer than comparable products.
Tool compatibility
| DC100/05 | AC200/05 | AC400/20 | AC600/40 | |
|---|---|---|---|---|
| Blow guns | ||||
| Tyre inflators | ||||
| HVLP spray guns | ||||
| Spray guns | ||||
| Staplers | ||||
| Nailers | ||||
| Pneumatic chisels | ||||
| Pneumatic sanders | ||||
| Small sandblasters | ||||
| Plasma cutting (air dryer required) | ||||
| Impact screwdrivers | ||||
| Pneumatic routers |
Ideal use
Conditional use
Not recommended
EVO Piston Compressors - Technical data table

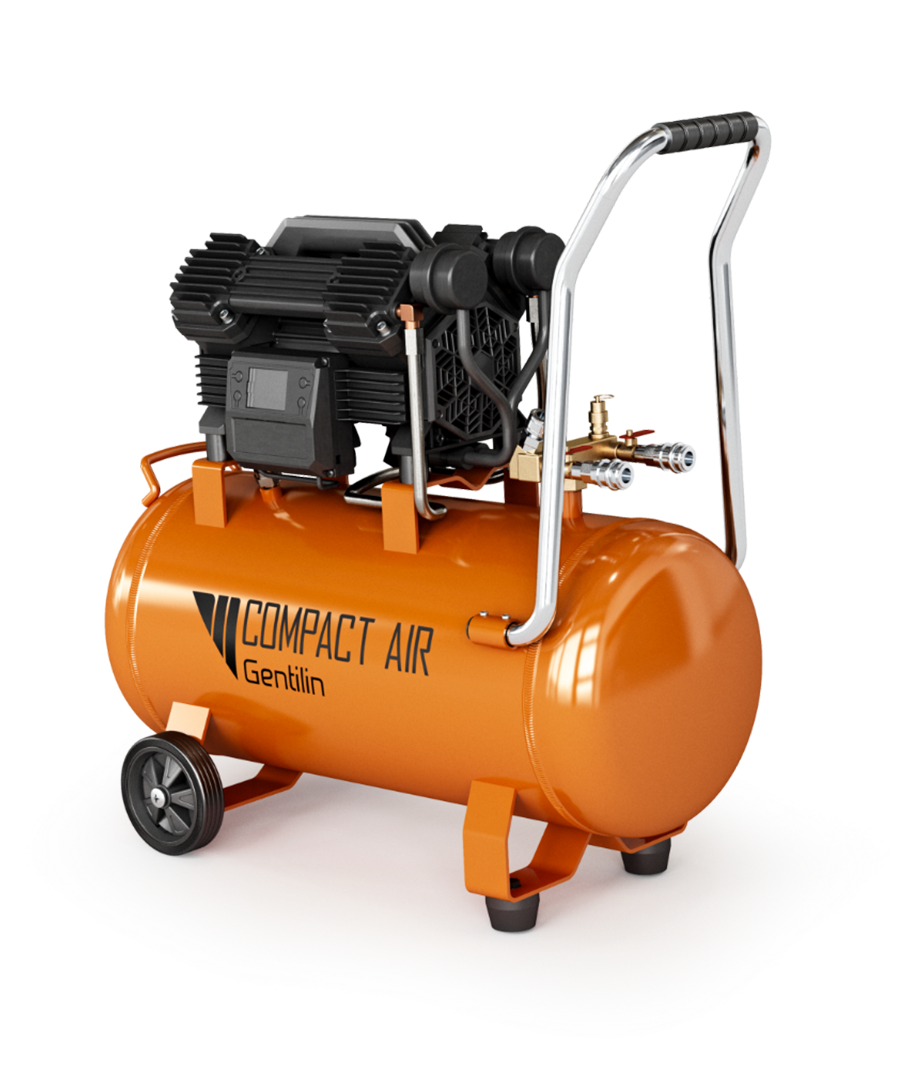

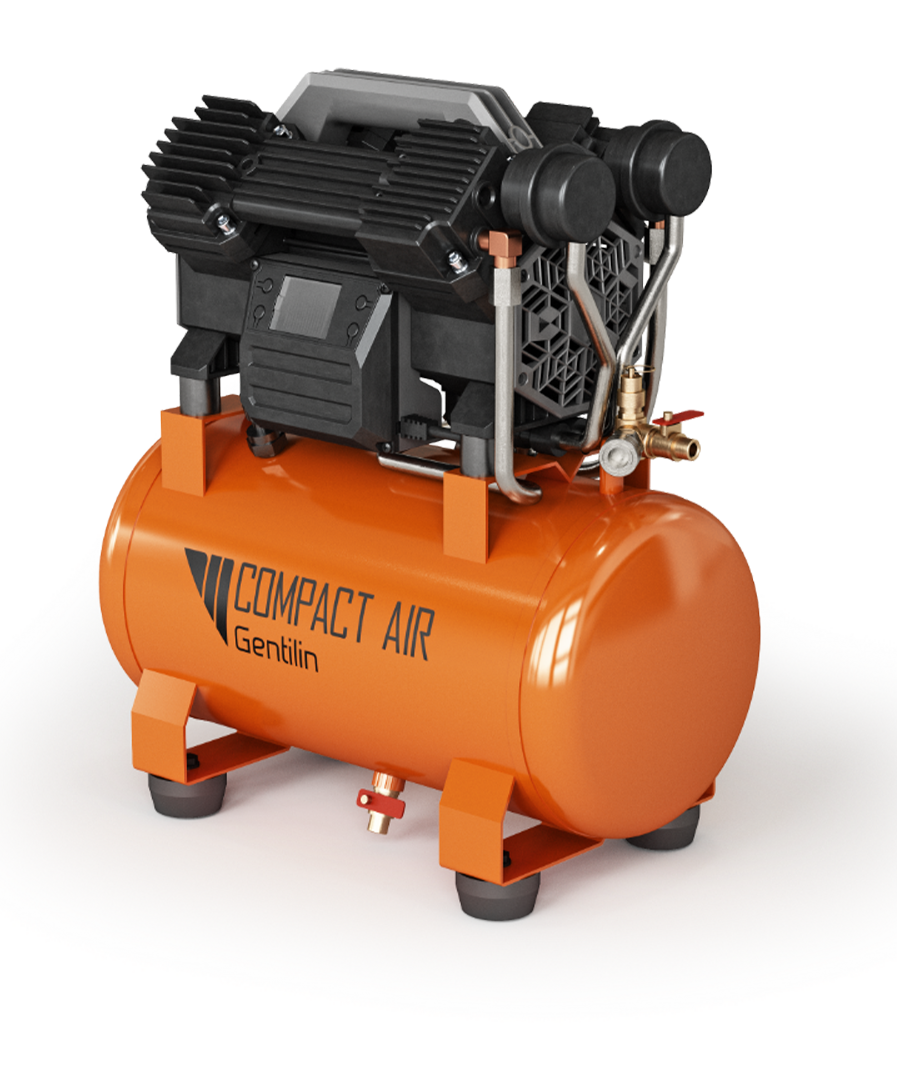

| DC100/05 | AC200/05 | AC400/20 | AC600/40 | |
|---|---|---|---|---|
| Type | Oil-free (intensive use) |
Oil-free (intensive use) |
Oil-free (intensive use) |
Oil-free (intensive use) |
| Voltage/Hertz | 230V - 50Hz | 230V - 50Hz | 230V - 50Hz | 230V - 50Hz |
| FAD | 105 lt/min | 185 lt/min | 250 lt/min | 350 lt/min |
| Air delivery at 5 bar | 40 lt/min | 60 lt/min | 130 lt/min | 234 lt/min |
| Max bar | 9 | 9 | 10 | 10 |
| dB | 67 dB | 71 dB | 75 dB | 77 dB |
| Tank | 5 lt | 5 lt | 20 lt | 40 lt |
| Dimensions | 32x26x47 cm 11 kg |
33x26x41 cm 9 kg |
44x25x52 cm 15 kg |
66x29x59 cm 22 kg |
| Duty cycle | 100 % | 100 % | 100 % | 100 % |
| Maintenance interval | 1.500 hr | 1.500 hr | 1.500 hr | 1.500 hr |
